Building A Phase Converter

(Return to Home Page)

Members sated with doughnuts and seated, ready to go!

Home shops are faced with the problem of running equipment that contain 3 phase electric motors in shops with only single phase power. The solutions available to the home shop are:

	replace the 3 phase motor with a single phase one.
	Use a static phase converter like those sold by Phase-O-Matic
	Use a VFD (Variable Frequency Drive)
	Use a Rotary Phase Converter

Marty recommended a small publication as reference for the home shop:

How To Run Three Phase Motors On Single Phase Power
T. J. Lindsay, Lindsay Publications
Bradley, Il 60915
Copyright 1977
Current availability is unknown.

Replacing the motors can be a cost effective solution for small horsepower applications. The problem comes if there are special mounting configurations, machine interfaces, etc. As motor size goes above 2 horsepower, other solutions are more cost effective.

The Variable Frequency Drive is becoming a cost effective solution for some applications. In applications of 1 to 3 horsepower VFD's should be considered. In standard motor speed applications, the VFD digitally switches the power at 120 degree intervals. This approximates a sine wave power source for the motor. Changing the frequency of the switching will cause the speed of the motor to change up or down.

We discussed some specific applications to equipment that have variable speed controls built into them. The best answer to this question is get with  a competent VFD person that can understand specifically how your machine is built.

Cautions in using these drives are:

	In slow speed applications using less than 60 hertz, motor over heating can be a problem. This is a common issue in threading, parting, and similar slow speed operations.
	Using these drives to get higher RPM than rated for a motor works within the limits of the motor design. It is possible to over drive the motor speed to the point of mechanical failure.
	If you want electronic brake applications in your machine, be sure to select the VFD with this specific function included.
	The VFD is an excellent choice for the home shop using CAD/CAM. Dealers Electric (www.dealerselectri c.com) is a good source for VFD's for the home shop.

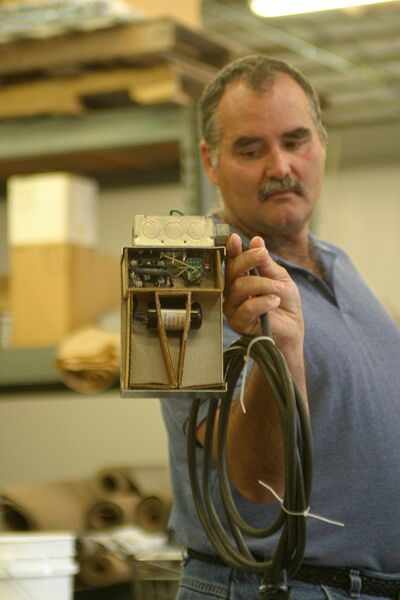

Marty Escarcega our demonstrator for this event shows what's inside a static phase converter.  I for one was surprised when I opened mine up a few years ago to find pieces of cardboard.

Static Phase Converters.    Static Phase Converters cause the equipment motor to develop only 50 to 60% of rated power. They are easy to install utilizing a 220V single phase power source. The units are sold in specific motor horsepower sizes that must be matched to the motor size in the equipment.  They are essentially a motor start capacitor, and a relay to switch the capacitor out of  the circuit once the motor starts. Once the motor is started, it runs on 2 phases thus the reduction in rated horsepower. Note: Using a higher horsepower rated unit does not increase the usable horsepower of the 3 phase motor.

The Rotary Phase Converter uses a 3 phase motor sized to be slightly larger than the motor load to be connected to it as an idler motor. The idler motor is brought up to rated speed using 2 phase power. Once the idler motor is at speed, it will induce power in the third phase leg. These 3 phase legs are then tapped as the power source for the 3 phase motors in the shop equipment. Using this configuration, the resulting power is over 90% of the rated horsepower of the idler motor

A great feature of the Rotary Phase Converter is you can run up to 4 pieces of equipment on one Rotary Phase Converter. The combined horsepower of the equipment load may even be slightly higher than the rating of the idler motor. Club members using Rotary Phase Converters report starting the Rotary Phase Converter as they enter the shop. The unit runs until they are  ready to leave the shop. If there is no load on the Rotary Phase Converter, the current draw is very low. Rotary Phase Converters can be built on a cart, or wiring distribution to shop equipment from the Rotary Phase Converter can be used.

The Rotary Phase Converter is a cost effective solution for the home hobby shop. Used  3 phase motors for the idler motor can be scrounged easily. Be sure to have the voltage of the idler motor be the voltage you want from the Rotary Phase Converter. The balance of the parts should run under $100. With a little time in the home shop, you can make a very reliable converter.

We demonstrated 2 methods of making a Rotary Phase Converter

The electronic version is essentially the equivalent of a static phase converter connected to a 3 phase idler motor. The pictures of Russ Huffman's unit we built today shows how this unit would look. Russ's unit is built around a 3 horsepower motor. See the schematic posted on the club web page for the typical wiring diagram. Russ' unit was completed and brought up to speed and generated the 3 phase power. We also demonstrated how to use an oil filled run capacitor to balance the power in the 3 phases.

For the basic Electronic Rotary Phase Converter you will need:

	A Potential Relay Grainger # 6X550 at $17.93.
	Electrolytic Capacitor motor start capacitor calculated at 70mfd per HP (i.e. 3hp x 70mfd=210mfd) Remember to get one rated for over 200 volts The start caps I found are Grainger # 4CU58. They are 270 - 324 uf 220/250 V AC and cost me $12.20 each
	You will need an electrical enclosure 8"x8" should be ok, Home Depot or Evergreen Hardware sells them (larger enclosure required if you want to fiddle with oil filled run capacitors to balance it later)
	Some 12 or 14 gauge stranded wire. I got #10 THHN wire at Home depot in 4 colors (Black, Red, Blue, & Green) for $0.42 per foot cut to length. As an alternate, Home Depot has 4 conductor #10 stranded SO cord at $2.25 per foot. If you elect to use the SO cord option, you will need cord connectors Grainger # 5D726 for ½" knockout hole size at $5.16 each..
	Some YELLOW Solder less crimp connectors (wire size range 12-10 gage). I got female spade type, #10 ring type, and #10 fork type in packs of 6 units for $0.99 each at Home Depot. I recommend getting 2 packs of each type for the project.
	A 20Amp 2 pole DPST Toggle Switch Grainger # 2X633. is rated at 20 Amp at 125V and 10A at 250V. This is the biggest rated switch they had. It is marked for 1.5 hp 125-250V. `It cost me $10.19
	A terminal block with 4 positions (not super necessary but much cleaner. I found a 6 position terminal strip at Grainger # 6YH65 with #8 screws in the terminals for $5.53
	A 3/4" chase nipple to bush the enclosure to the motors wiring compartment and lock nut

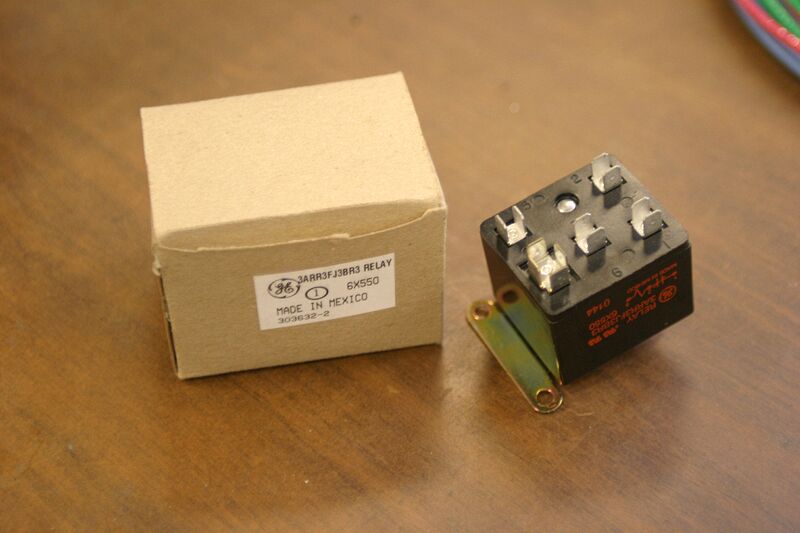

Potential Relay Grainger # 6X550

Construction Steps:

	Mount the potential relay in the enclosure
	Mount the enclosure to the motor.
	Bring the motor leads into the enclosure.
	Mount your switch on the enclosure.
	Mount your terminal block in the enclosure.
	Mount the start capacitor in the enclosure You are now ready to wire the Rotary Phase Converter per the wiring diagram shown in the file on our web page as posted by Bob Sanders.

Some general notes about wiring:

The standard wire color code for 3 phase 230V wiring is:

T1 = Black
T2 = Red
T3 = Blue

Swapping any 2 of these wire positions will reverse the direction of motor rotation

Many home shops use a sub panel to distribute power in the shop.  Use special care to connect a dedicated ground wire from the main panel to the sub panel for proper wiring protection. The neutral feed wire between the main panel and sub panel in this application does not meet electrical  code.  Please consult an electrician or the National Electrical Code Handbook if you have any doubts about what you are doing!

If in doubt, DON'T!

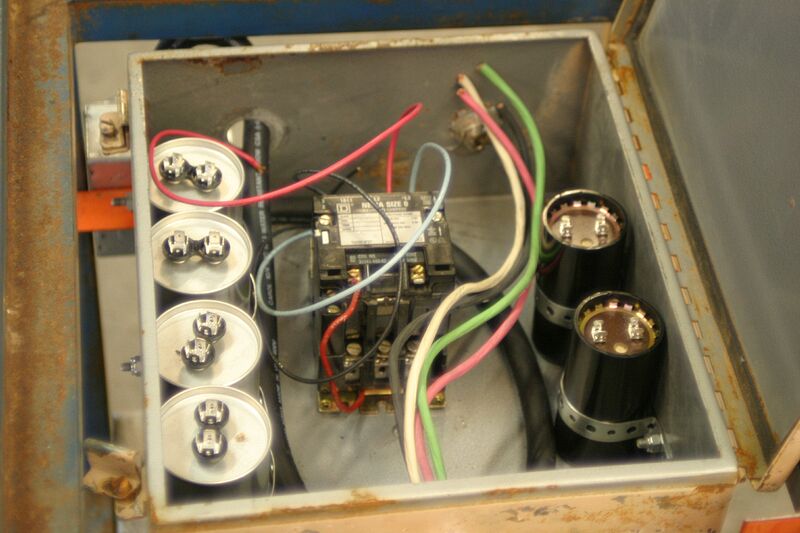

The inside of Tom's Biggee* phase converter

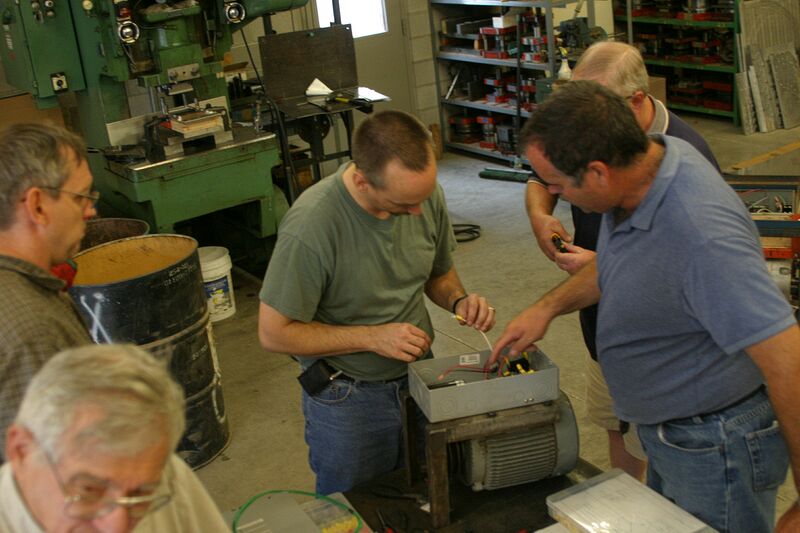

Marty directs Russ Huffman on the wiring of the phase converter.  While ###, ### and ### look on.

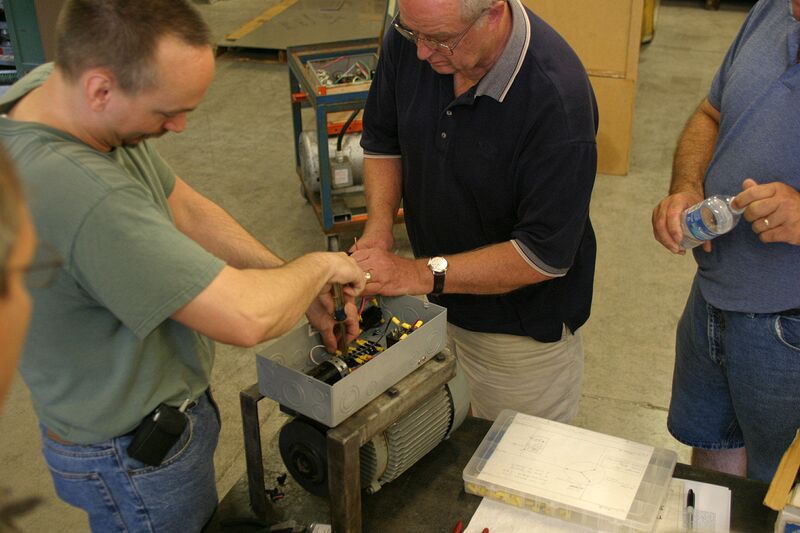

Russ Huffman and  ### install the parts while Marty supervises.

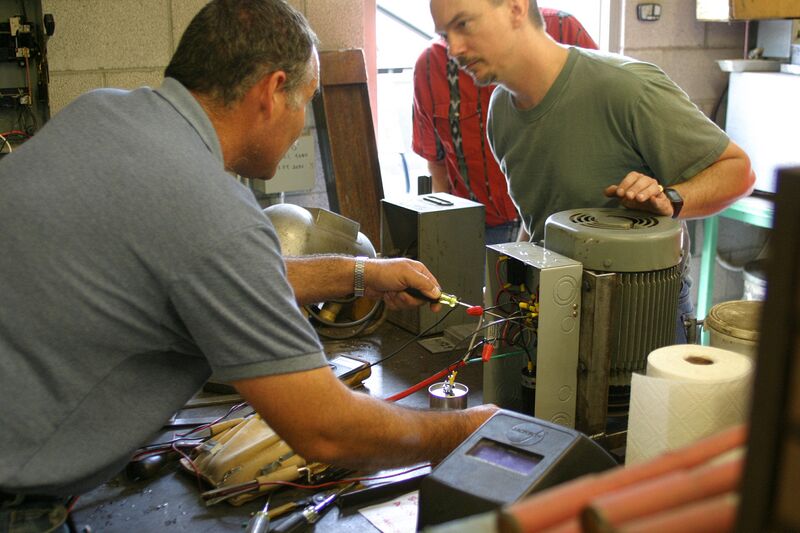

Marty tests Russ's phase converter.  He is measuring the voltage on the three legs and adjusting them to be equal with a different sized run capacitors.

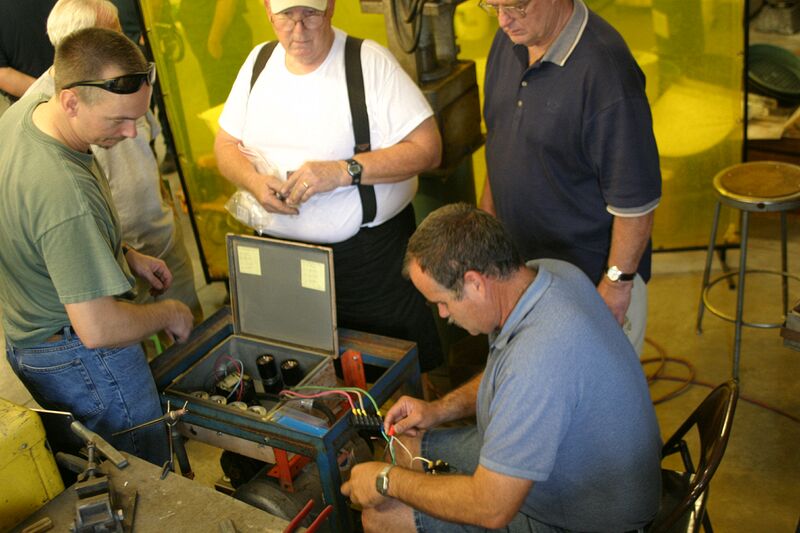

On to Tom Davis's monster converter.  Marty wires while Russ Huffman, Bob Sanders (hidden), Tom and #### observe and help.  It was discovered that the 7.5 hp motor actually would spool up without the assistance of the pony motor!

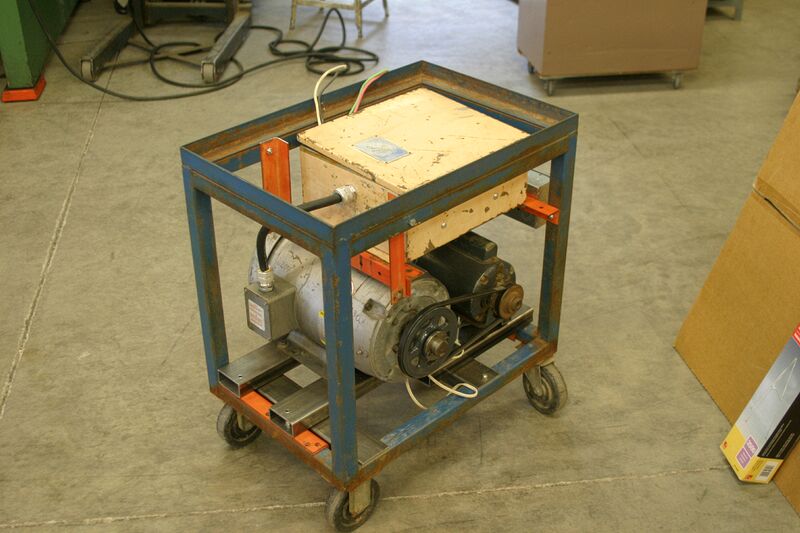

Tom Davis's large phase converter which uses  big 7.5 hp idler motor.  This second version is recommended for larger loads and idler motors (above 6 horsepower). This version uses a pony motor (single phase fractional horsepower) to get the  3 phase idler motor turning at some rpm. In the example in the pictures, we have approximated half the rated speed for the idler motor. 220V single phase power is then applied to the idler motor and it comes up to rated rpm. The idler motor then induces power in the third phase leg.  The pictures of Tom Davis' unit shows a 7.5 horsepower unit in this version. The wiring was done for demo purpose to show the application. The unit was not fully completed at the meeting, it did start and run to show proof of concept.

* Apologies to Dave Thomas and Wendy's Inc.
