Monthly Meeting April 2^nd 2005

TIG Welding Redux

(Return to Home Page)

The meeting was held at Tool Craft, once again we give a hearty round of thanks to Bob Sanders and his crew.

Rick Sparber started the meeting with a discussion of welding safety

	Maintain concentration on what you are doing.
	Concentration may cause you to miss critical issues
	Poor ventilation or fumes from welding
	Fires from sparks, radiation, etc ("it's hard to concentrate with your hair on fire!")
	Clothing.  Wear appropriate clothing
	Do not wear synthetic materials while welding
	Radiation can cause them to melt onto your skin
	Protect your skin from radiation burns  Long sleeves recommended
	Protect your eyes!   Your webmaster can vouch for this personally.  I tried to do a "quicky" repair under a piece of equipment where I could not fit the helmet and used a pair of safety glasses that had welding tinted lenses.  The light leakage around the sides caused painful radiation burns on both eyes.  Several days passed before it stopped hurting.  You have been warned!
	Wear safety glasses under the welding helmut
	Protect your ears from noises  Grinding goes with welding and is very noisy
	Don't wear tennis shoes.  They burn!
	An auto darkening helmut is recommended for all kinds of welding

Bart Hull discussed welding aluminum with TIG

	Miller offers manuals for all their products on the Miller Welding web site
	A magnifying lens inside the helmut makes seeing the pool easier
	A gas lens on the welding tip extends the distance the electrode can be extended out from the torch to reach into tight spots
	Argon is the cover gas for up to ¼" aluminum plate
	Helium is the cover gas for alumninum plate over ¼" thick
	Cover gas is used to increase heat penetration in aluminum plus avoid oxidation of the metal
	Caution:  When checking for cover gas flow, do not put the torch up to your ear.  The high frequency arc from the torch to your ear can really hurt.  Does Bart know this because of personal experience?
	TIG welders can be either AC or DC operation.  AC is recommended for aluminum welding
	Material prep and cleaning is critical for a good aluminum weld.

Dale Schmidt discussed TIG welding other metals

	Electrode ti[ shapes differ for aluminum and other metals.  Aluminum uses a ball shape tip.  Other metals use a pointed tip
	Grind the tip with all grinding marks parallel ti the long axis of the tungsten electrode.  This keeps the arc from swirling
	TIG welding is used on material less than ½" thick.  It takes too much power to TIG weld thicker metals
	TIG welding does not use gaps between but weld pieces.
	Get into a comfortable position before striking the arc.  Rest the electrode tip on the spot where the weld is to be started.  Adjust you body position as needed to get comfortable.  Then raise the tip up and hit the pedal to strike the arc

Bart demonstrated aluminum welding and then several club members got a chance to try their hand under expert tutors



Rick Sparber gave Safety Discussion, shown holding appropriate shirt.  David Butterfield, Tom Davis, Owen Jeffers, Bart Hull, Louis Wilcox, Dale Schmidt, Ron Vevin, and Bob Sanders watch.

Several welders were brought to the meeting.  Rick Sparber (back to camera), Owen Jeffers, Tom Davis, Gene Neigoff, Dale Schmidt, Ron Vevin, Louis Wilcox, Robert Sanders, Marty Escarcega and Bart Hull.

Another crowd shot.  David Butterfield, Gene Lucas’ back, Tom Davis, Gene Neigoff, Owen Jeffers behind Rick Sparber (with back to camera), Ron Vevin, Louis Wilcox, Robert Sanders.

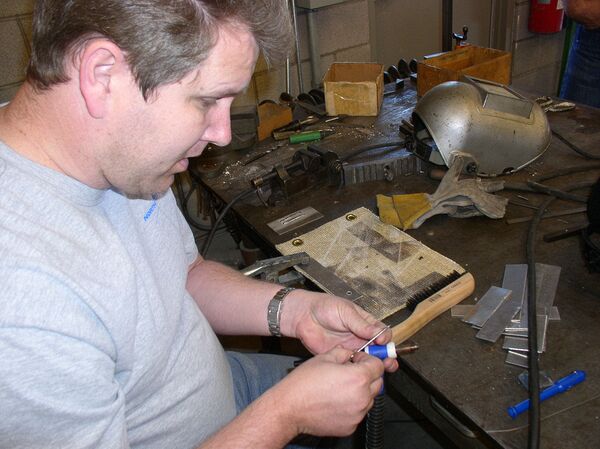

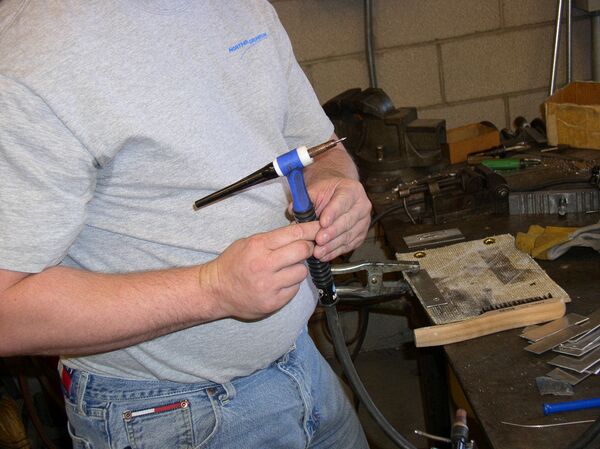

Bart Hull holding tip shows correct assembly of the torch

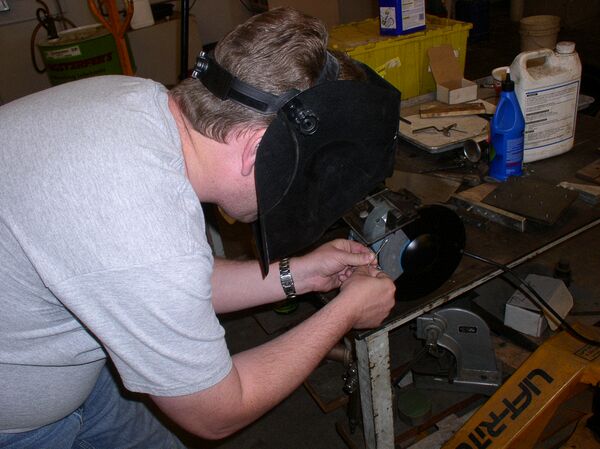

Bart Hull shows proper method of grinding tip, maybe we can get him to tell us about the helmut use.

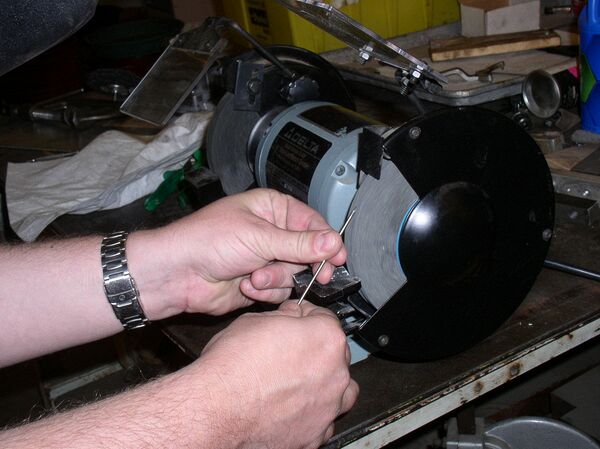

Close up of grinding the tip

Tip installed in the torch head.  Cup has not been installed.

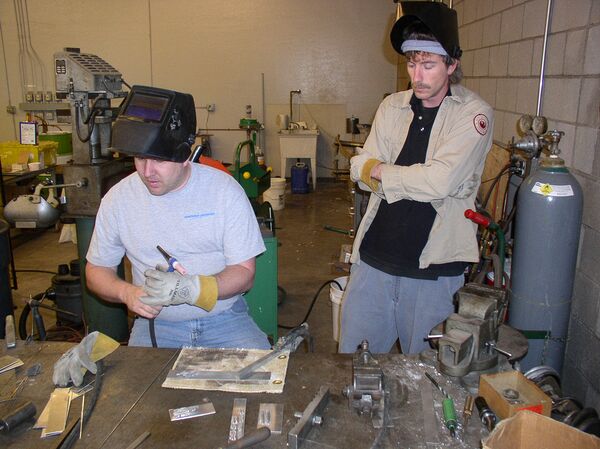

Bart Hull doing what he does well.  David Butterfield looks on while the technique is being discussed

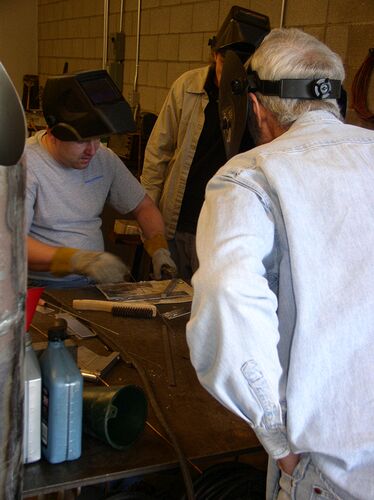

Ron Vevin (back to camera), Bart Hull and David Butterfield

04/17/05
